Teaching
Without Borders
A solar-powered education kit with offline apps, designed for remote and underserved areas. The best ICT solution for education, no connectivity required.
Treat it as a projector and computer in one, download and use your choice of apps. Add your own content via the flash drive, play video or use Microsoft Office. Connect wirelessly a phone, PC or STB or gaming device. Connect to your network or to the internet.
Made to work seamlessly with Access Agriculture’s offline 5300+ video library in over 110 languages. Agricultural teaching videos you can use anywhere. Or use our offline Wiki App to browse Wikipedia offline. Or create your own offline content and play it through our system.

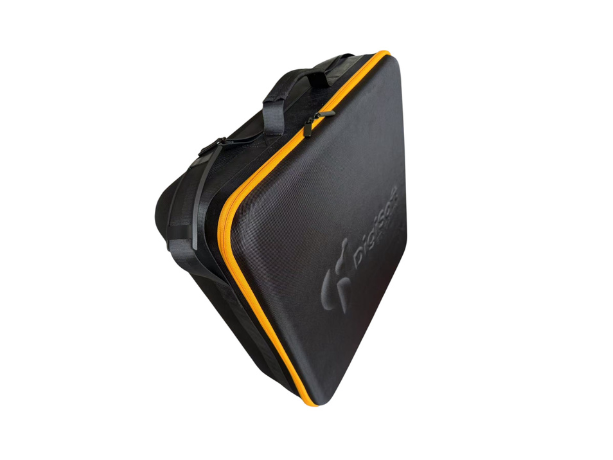

Custom made attractive case, water-resistant and dust proof, made to keep all the integrated parts together safely in a lockable case. Easy to carry, portable and convenience so you can take it anywhere. Go anywhere and teach anything.
All in One
DCS H10S Smart Projector – computer and projector in one, with: Bluetooth, Wifi and internet capability, ability to run offline apps. You can use a broad range of apps including Word, Excel, PowerPoint so you can use it as a computer. Purpose made sodium ion powerbank – packs a solid power punch able to run your projector for over 4 hours. Plus 120W portable folding solar charger, 60W Bluetooth speaker, Wireless keyboard, 1.2m folding tripod, All comes in a smart, rugged, waterproof and dustproof case.
Projector
Power Bank

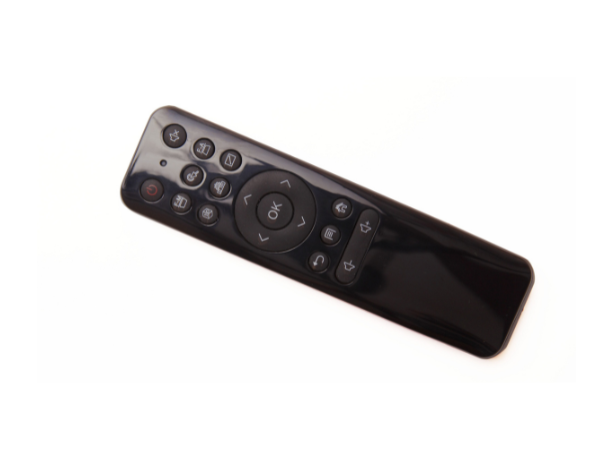

Remote Control
Keyboard

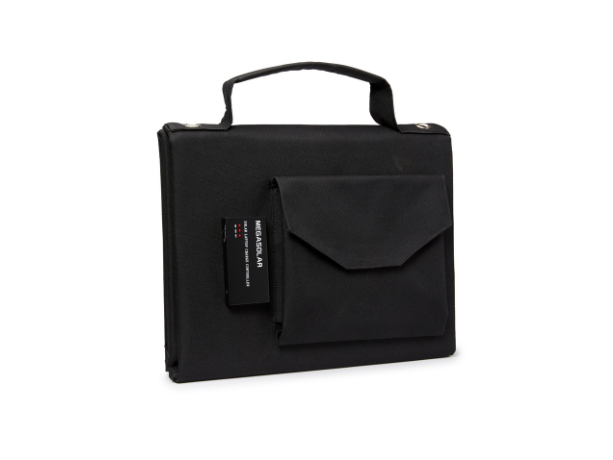

Solar Panel
Speaker

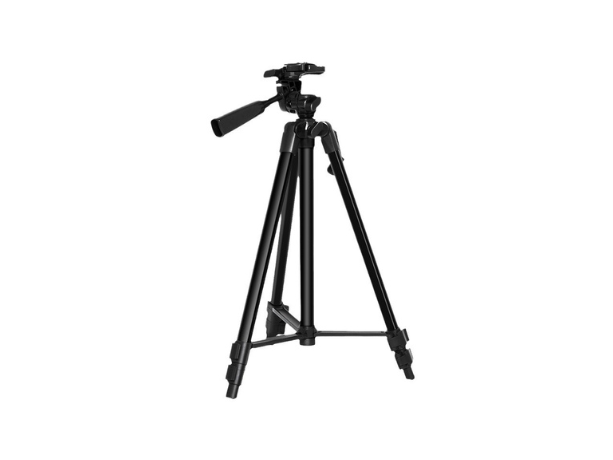

Tripod
Portable Case

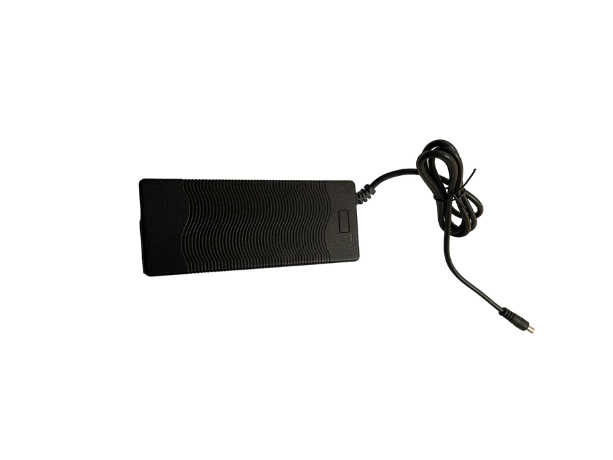

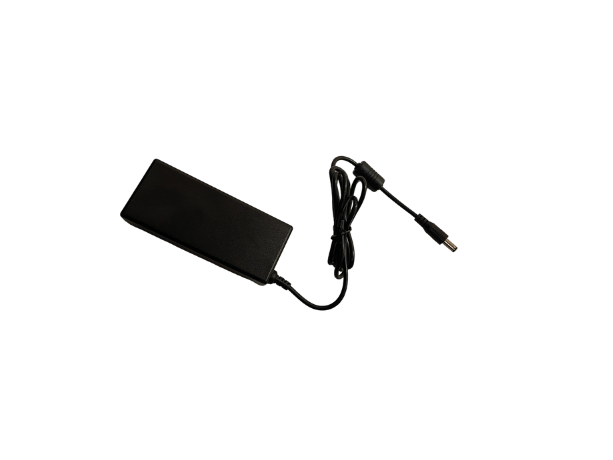

Adaptor
Adaptor

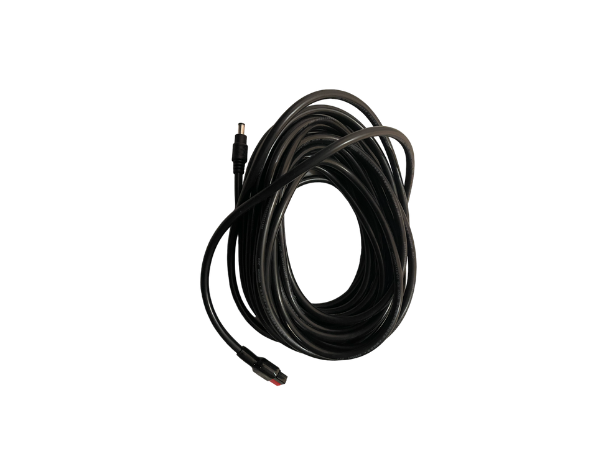

1 x 10m cable

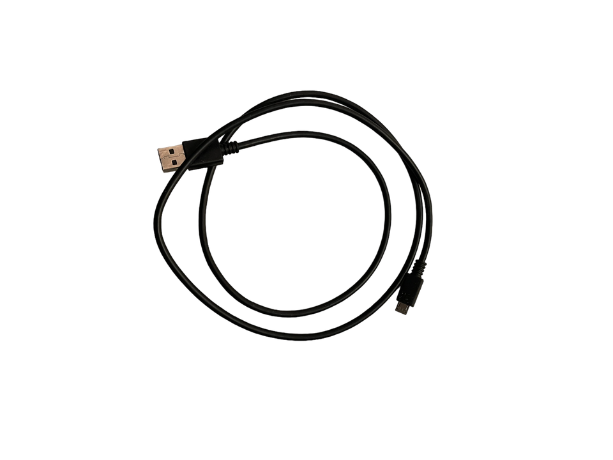

1 x 1.5m cable

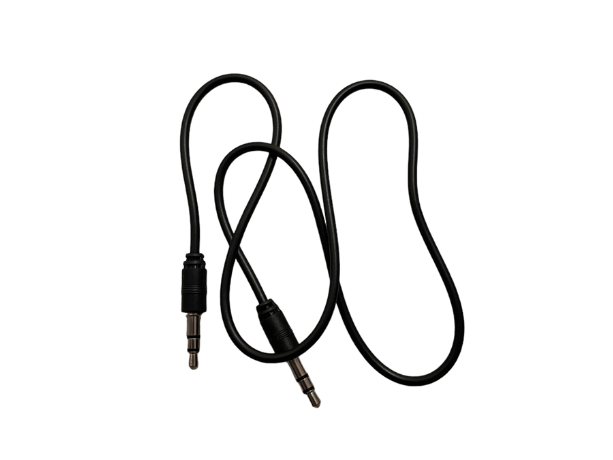

1 x AV cable

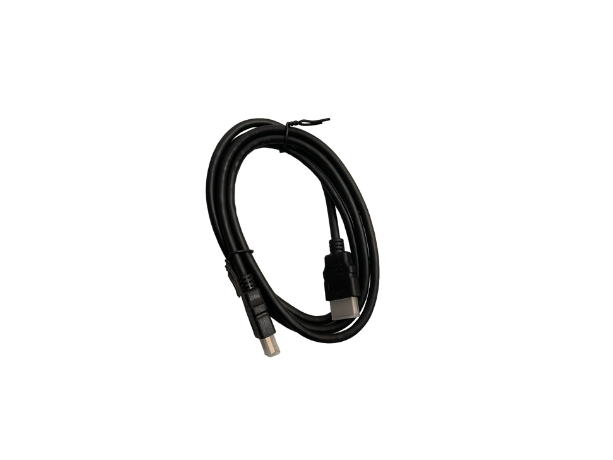

1 x HDMI cable
1 x HDMI cable

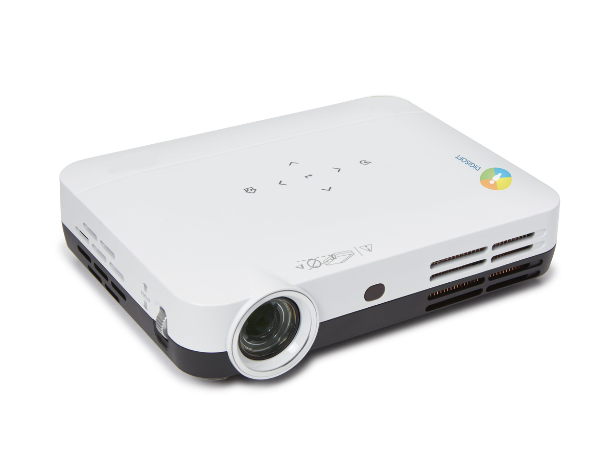

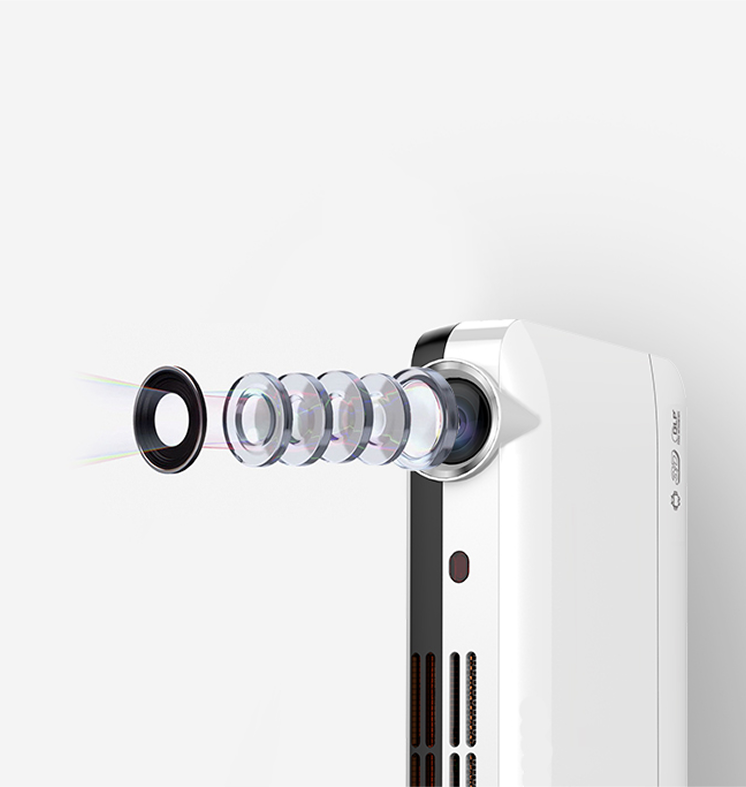

DCS H10S Smart Projector
The Digisoft H10S is a compact and versatile device designed to bring education everywhere — even to the most remote areas. Running on Android 9, it is optimized for learning, teaching, and accessing high-quality digital content.
- Display technology – TI DLP
- Light Source – RGB LED
- Lens Lifetime – 30,000 Hours
- Specialty – 3D
- Luminance – 600 – 700 ANSI Lumens
- Contrast Ratio – 1000:1
- Native Resolution – WXGA (1280 x 800)
- Compatible resolution – 4k & 8K
- Color temperature – 7500 – 9000 k
- Throw Ratio – 1.2:1
- Focusing – Manual
- Keystone correction – 4 point keystone (auto vertical + manual horizontal)
- Projection Mode – Front/back/ ceiling mode (auto)
- CPU – Quad Core – Cortex A55 1.9GHz
- GPU – G31 MP2
- RAM – 2GB LPDDR4
- Storage – 16GB eMMC
- Operation System – Android 9 OS – with DCS8.1 app
- DRM License – L1 level
- WiFi – 2.4G+5.8G
- Bluetooth – Yes
- Mirroring Display – UShare – (Airplay/DLNA/Miracast)
- Source Searching – Auto/manual
- Electrical Parameters – < 35dB
- Internal Speakers – 5W * 2
- Power Dissipation – MAX 60W
- Input – 19V 3.42A
- Power – AC100-240V, 50/60Hz
- Video Types 1 – MPEG-1/2/4 1080P30fps
- Video Types 2 – H.264/H.265 4KP60pfs etc.
- Audio – MPEG-1/2/3 etc
- Picture – JPEG, GIF, BMP
- Size – 188(L)*182(W)*81(H)mm
- Weight – Gross Weight/piece: 2.25kg

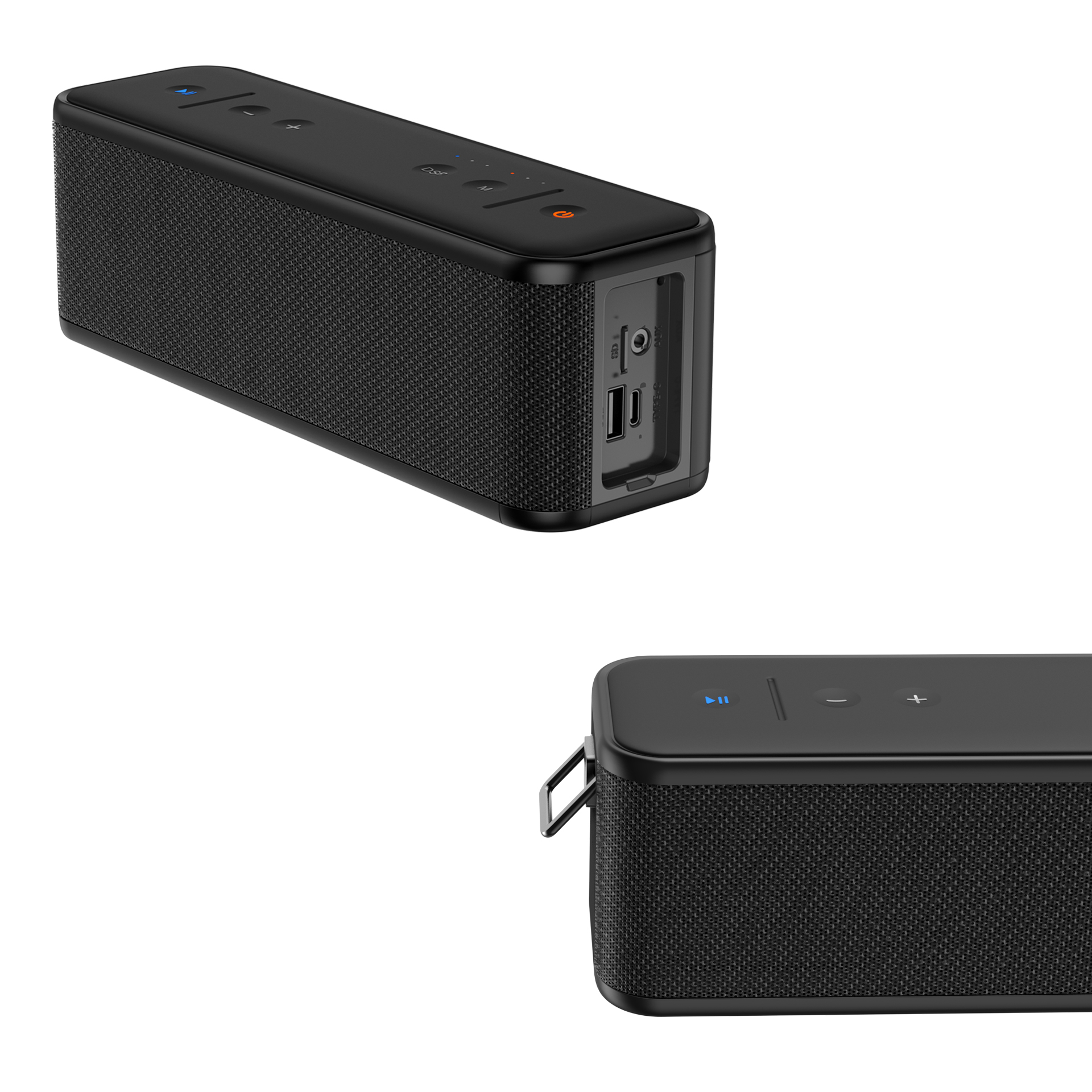

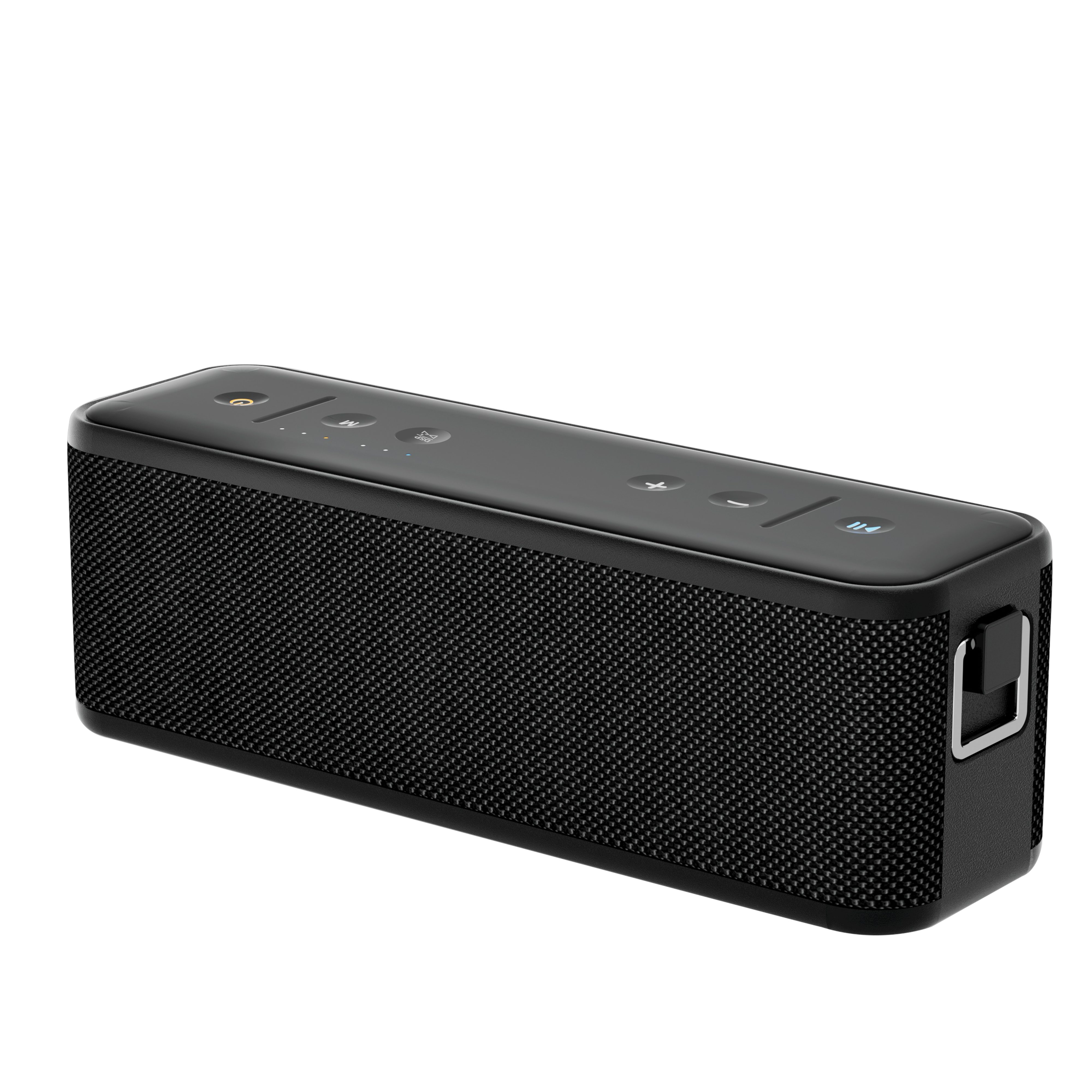

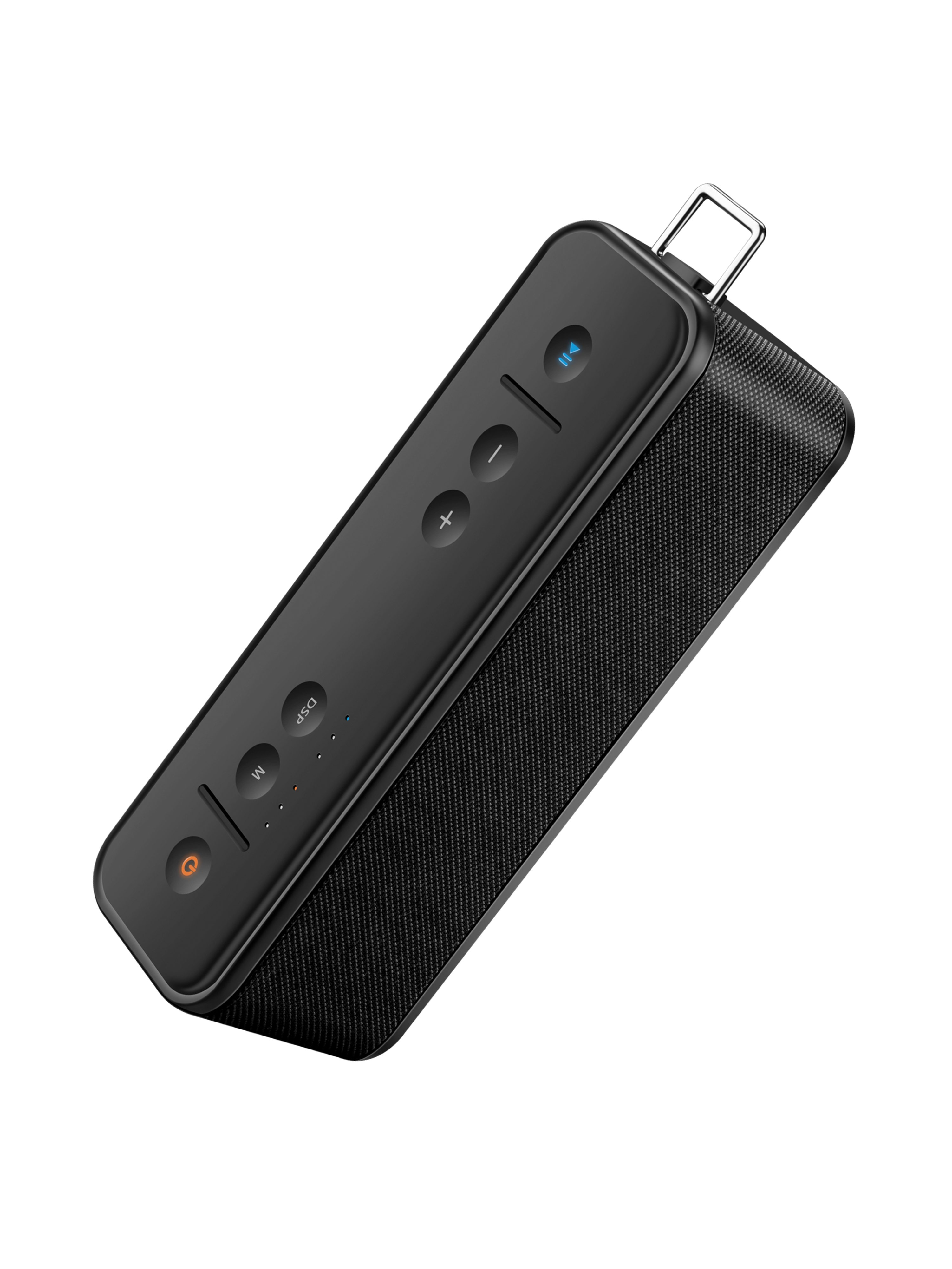

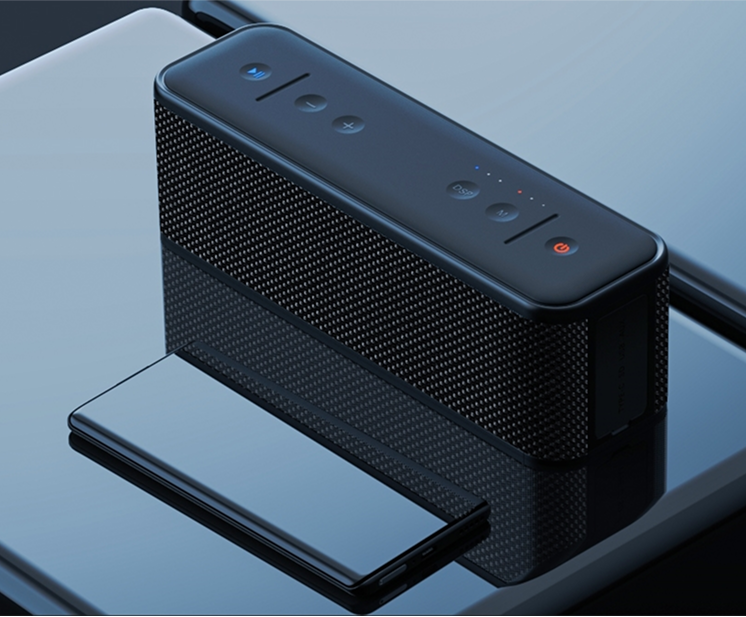

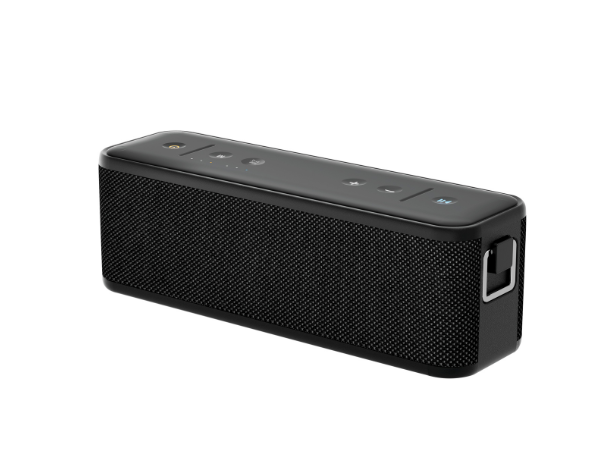

60W Bluetooth Speaker
Make sure your message is heard. The speaker included in the kit delivers loud, clear, and crisp audio that reaches every corner of the classroom — whether that’s four walls and a roof or an open-air gathering under a tree.
- Dimensions – 221x66x71mm
- Weight – 729g
- Built In Battery – 5200mAh / 7.4V.
- Charging Time – 3 Hours
- Playing time – up to 12 hours
- Watts – 60W. True Wireless Stereo
- Waterproof and Dust proof – IPX7 waterproof grade
- Bluetooth – With A2DP Bluetooth
- Supports – Support TF/AUX/USB

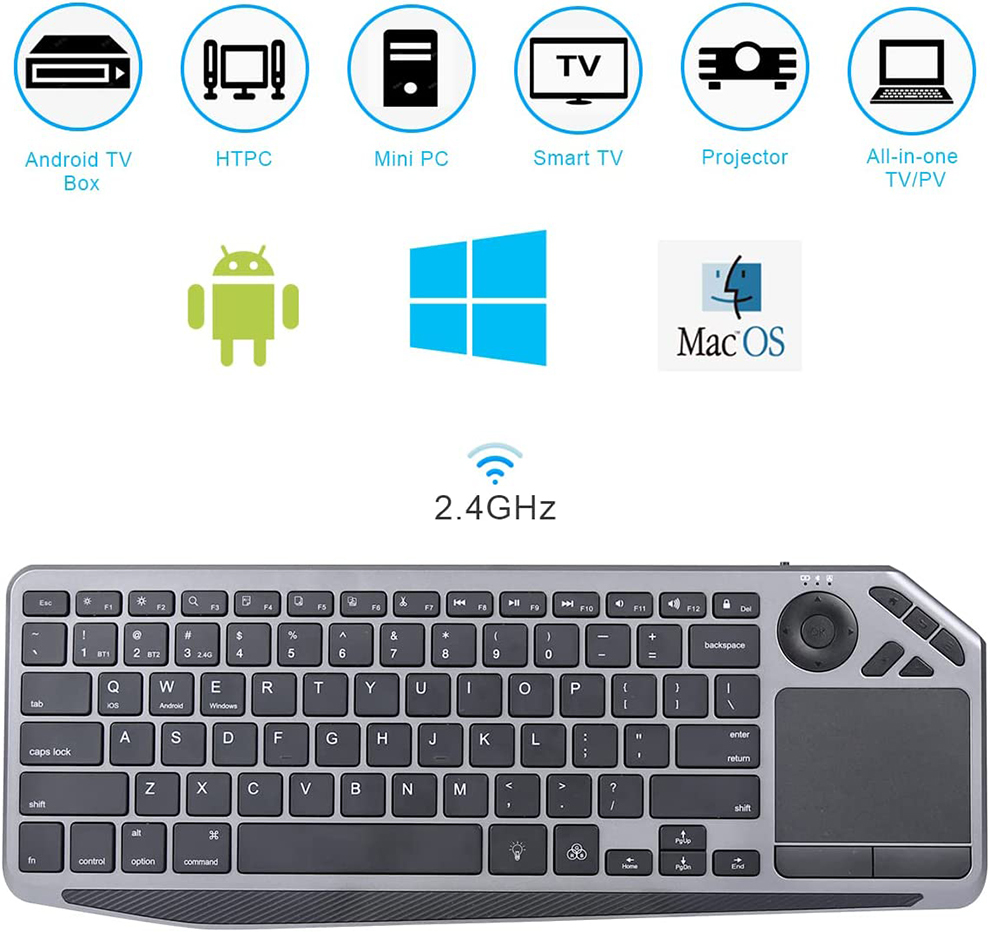

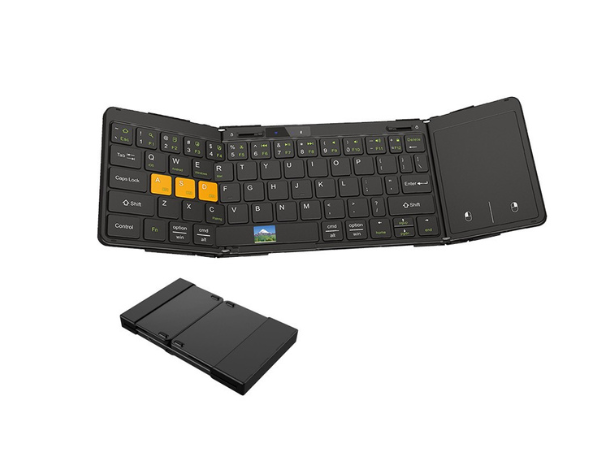

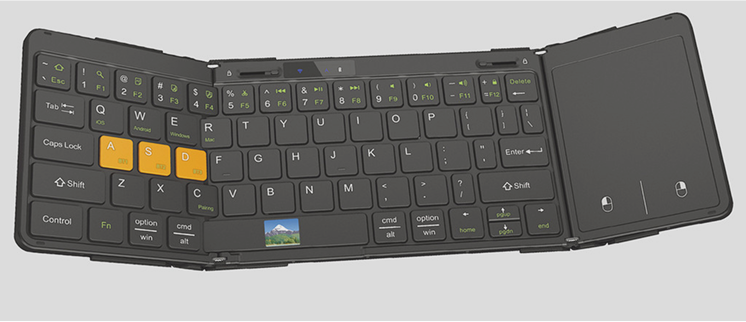

- All-in-one TV keyboard BT dual-channel +2.4G universal keyboard
- Backlight (TV keyboard) Material: ABS plastic
- supported system: i.O S,Android,Windows
- Wireless/BT solution: BT +2.4G dual-mode
- Keyboard life (keystrokes) : 5 million
- Wireless/Blue-tooth transmission distance: 10 meters
- Working current/voltage: 1mA/3.7V (typing), 7mA/3.7V(touch)
- Battery Type & Capacity Polymer soft pack Lithium Battery 503450- : 1000mAh
- Charging time: 5 hours
- Usage time: more than 6 hours
- Charging port TYPE: type-C
- Standby time: >6 months (without backlight)
- Keyboard size- 346.86X106.09X8.8mm(open) /187X106.09X17.8mm( folding)
- Touch pad size – 92.1*67.46mm
- Weight – 227g
- Working Voltage – 3.7V
- Sleeping time – 10 minutes
- Working Distance: 10m
- Lithium Battery Capacity: 210mAh
- Wake Up Method: – Press any key
- Application – Windows/I.OS/Android/M.ac
- 2 AAA batteries not included
- RF Wireless Communication
- Package Contents: 1 x Projector Remote Control

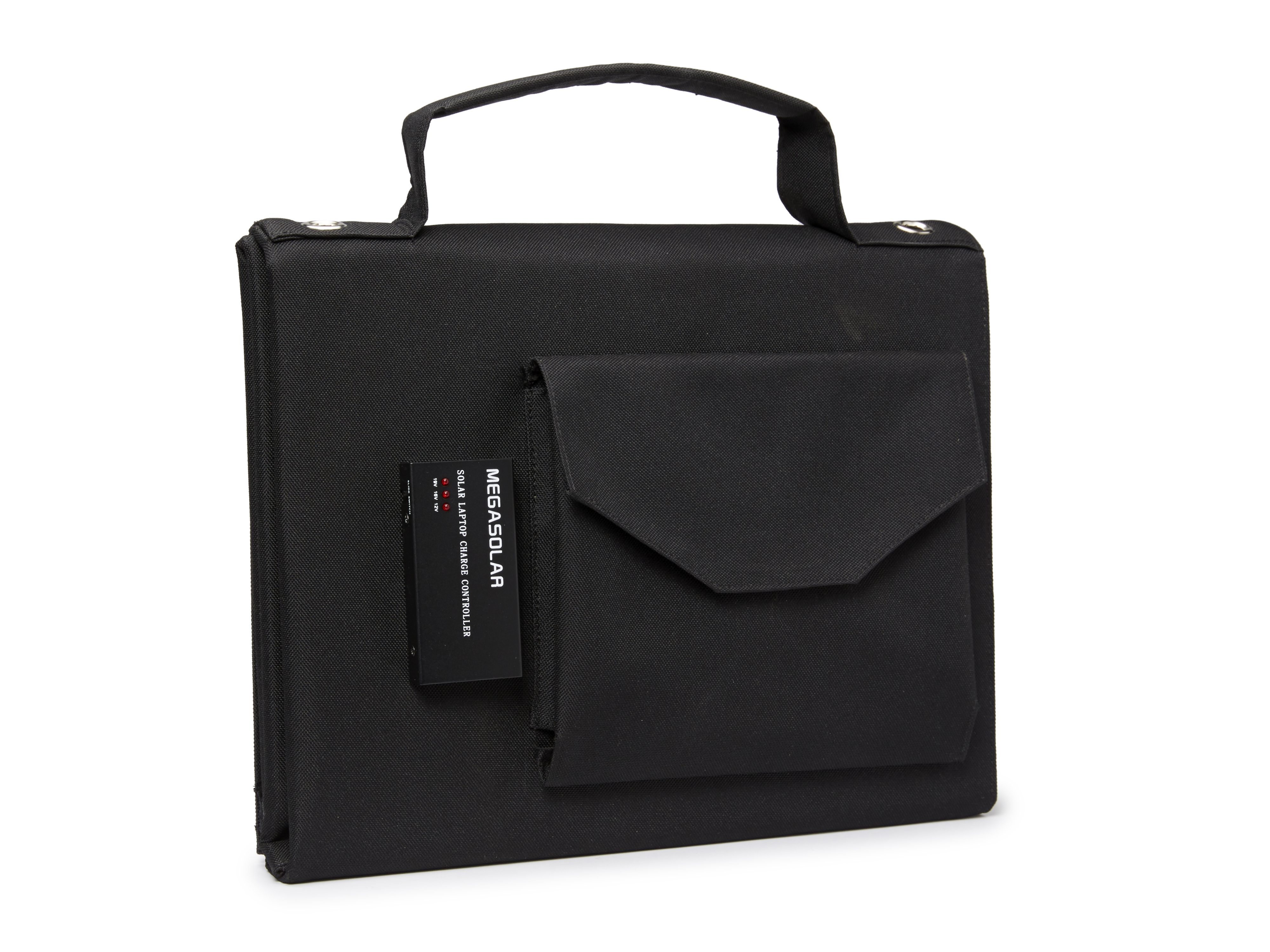

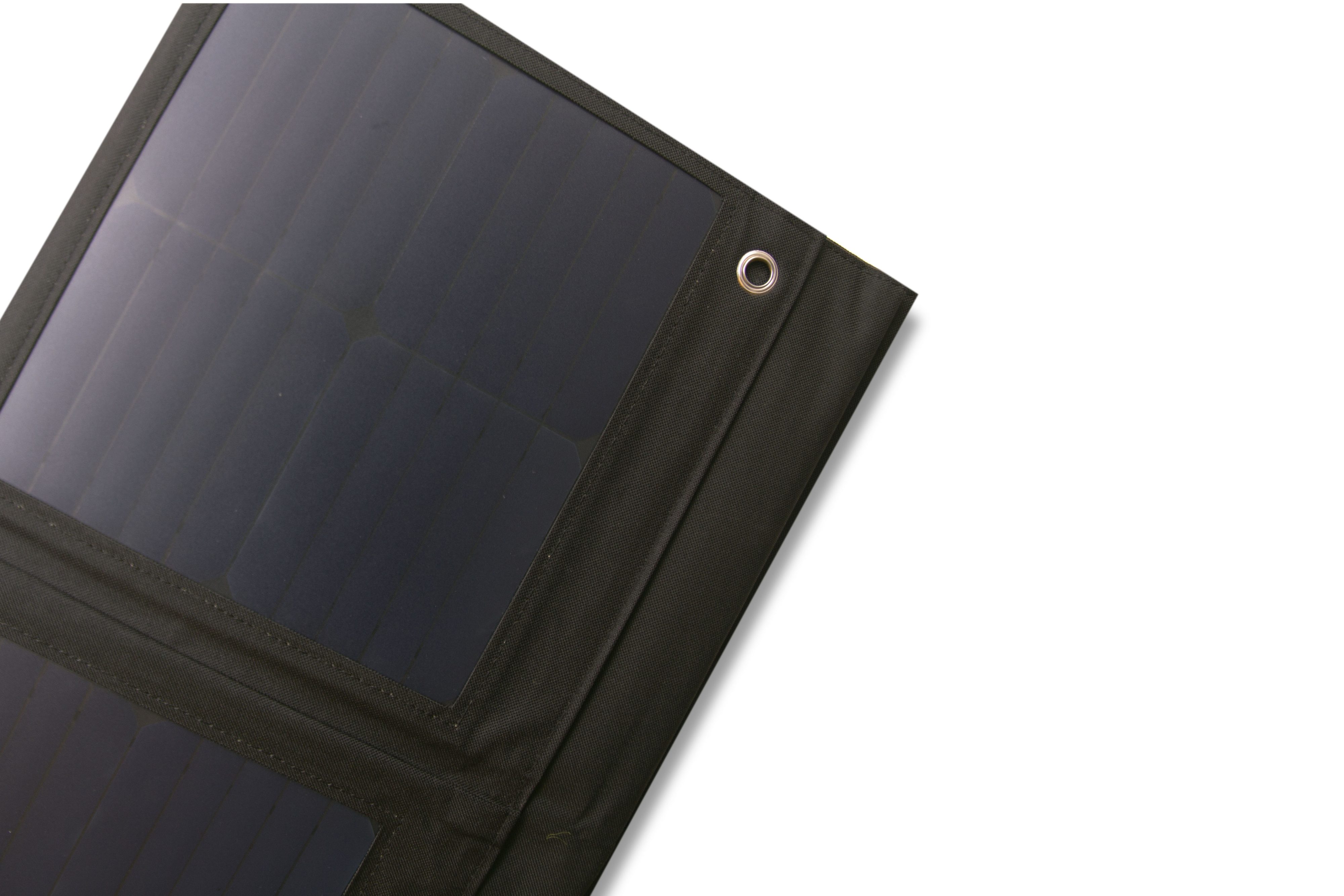

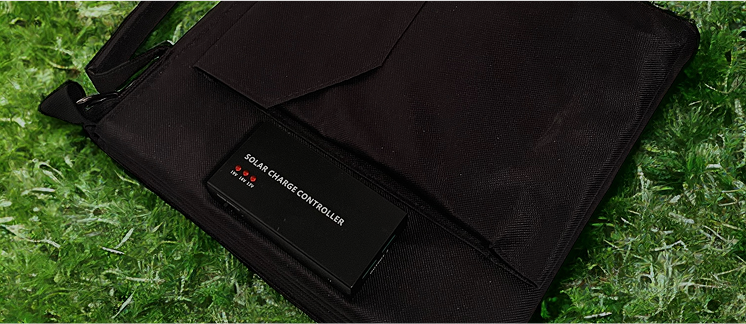

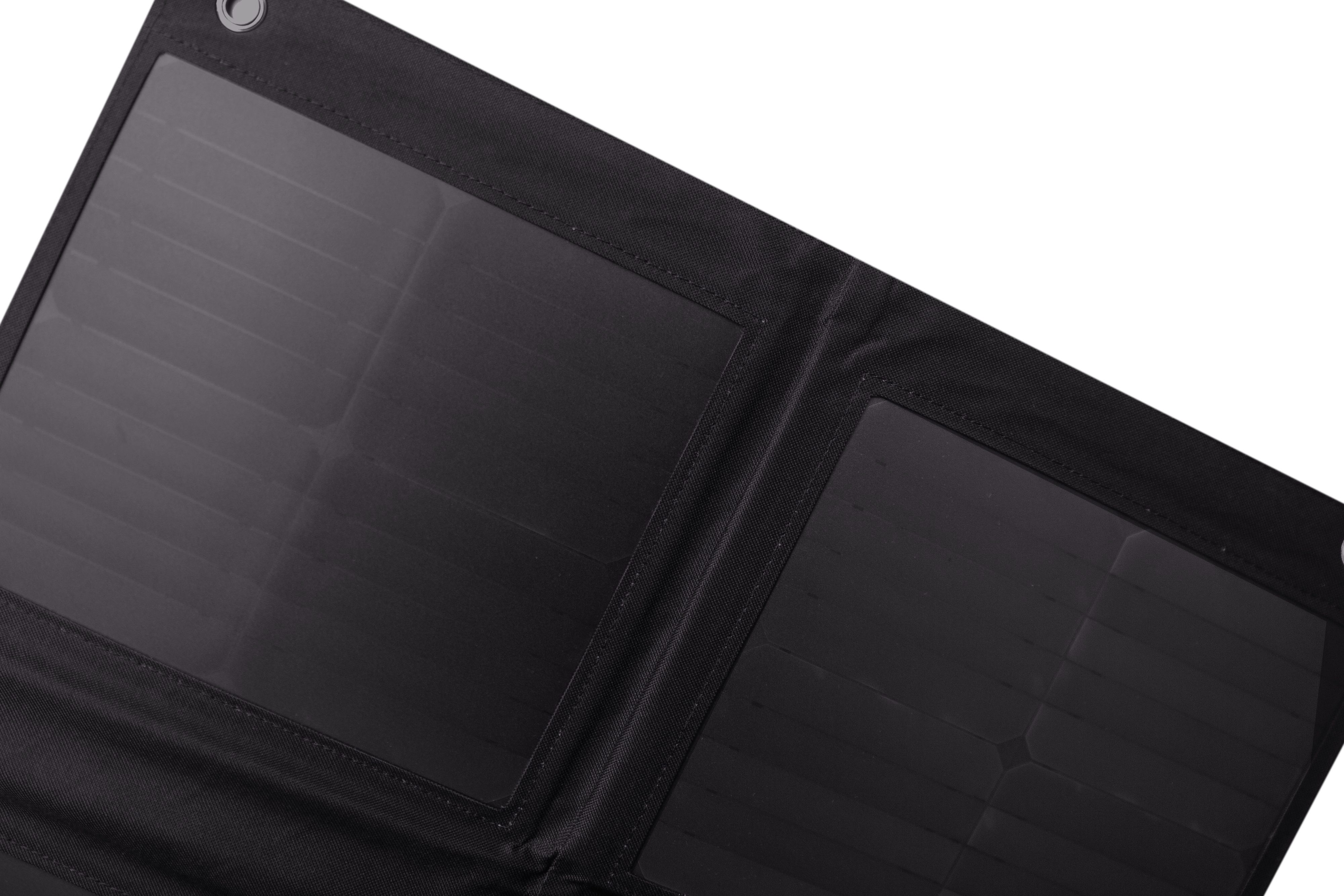

- Model: MS-LSC120PD – Max power: 120W
- Solar panel: SUNPOWER solar cells 22%, 12 x 10W.
- USB-A output: 1*QC3.0 5V2A/9V2A/12V2A
- DC output: 20v4.5a/16v5a/12v5.5a max.
- USB-C output: 1*100W PD
- 5V3A/9V3A/12V3A/15V3A/20V4.5A max.
- Folded dimension: 300*310*90mm
- Unfolded dimension: 2100*580*30mm
- Net weight: 2.68kg
- Color: black
- USB-A output: 5V2A/9V2A/12V2A max. Quick Charge 3.0 output. It supports QC3.0 and can recharge 5V/9V/12V digital products and small home appliances on the market including smart phones, tablets, power banks etc.
- USB-C output: PD TYPE-C 5V3A/9V3A/ 12V3A/15V3A/ 20V4.5A max. output. It supports PD TYPE-C protocol and can recharge PD TYPE-C compatible digital products, including laptops, smart phones, and power banks etc.
- DC5525 output: 12V, 16V and 20V which apply to a variety of digital devices whose voltages are 12V, 16V and 20V, including laptops, DC products, battery packs, routers, modems, portable DVDs and more.
- DC5525 output voltage choices: if your device DC input is 11V to 13V, please switch to 12V; if your device DC input is 13V to 16V, please switch to 16V; if your device DC input is 19V to 21V, please switch to 20V.

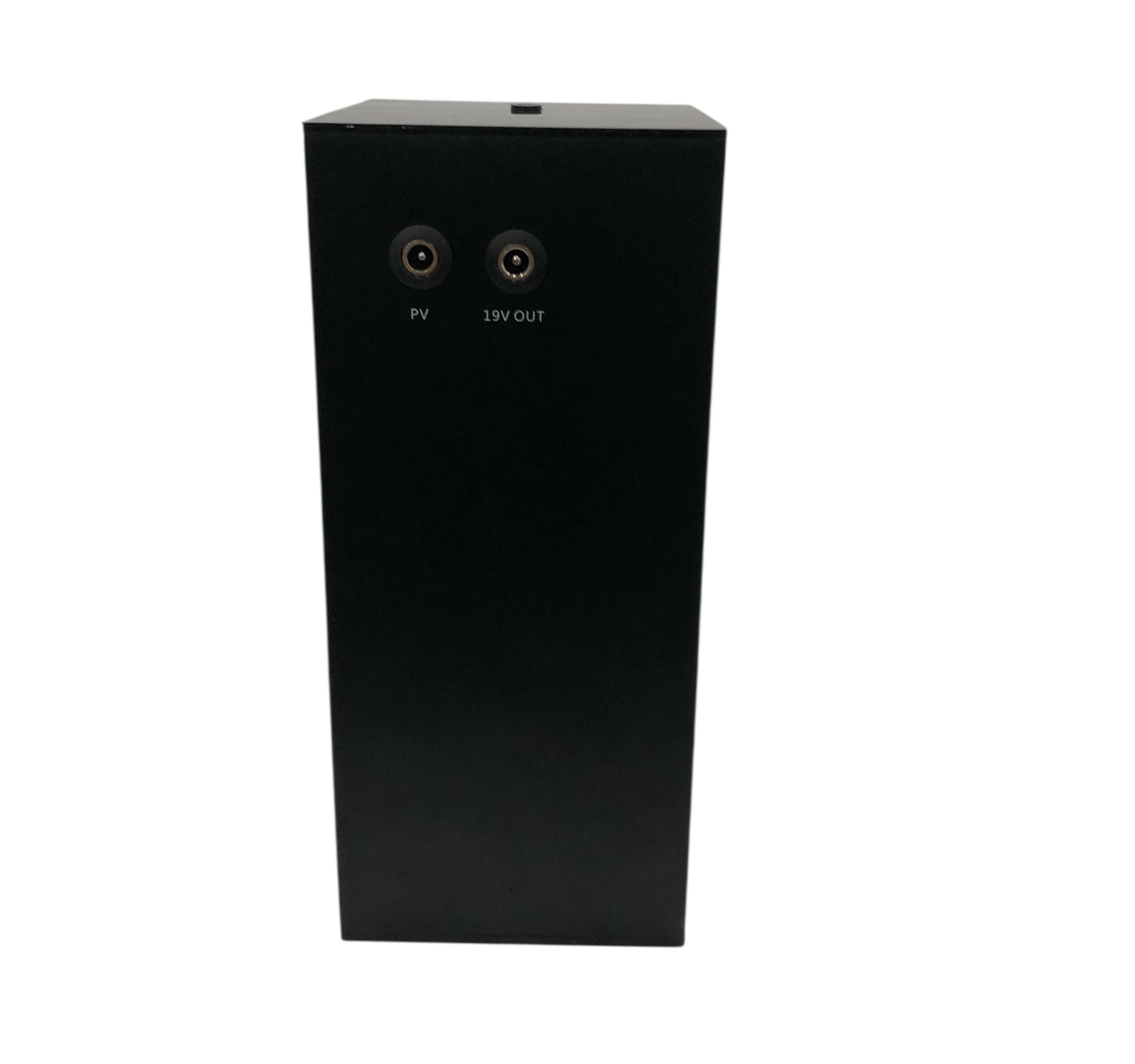

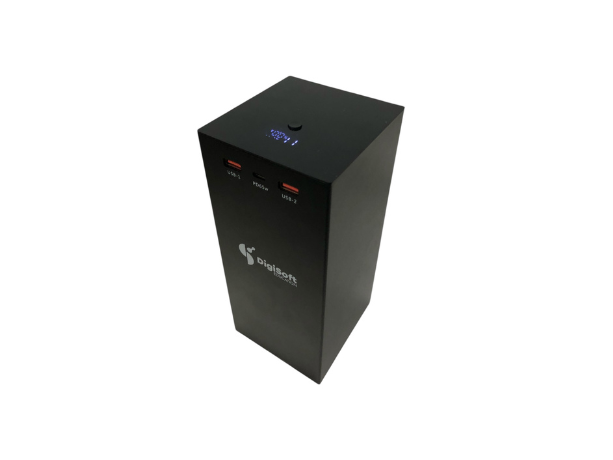

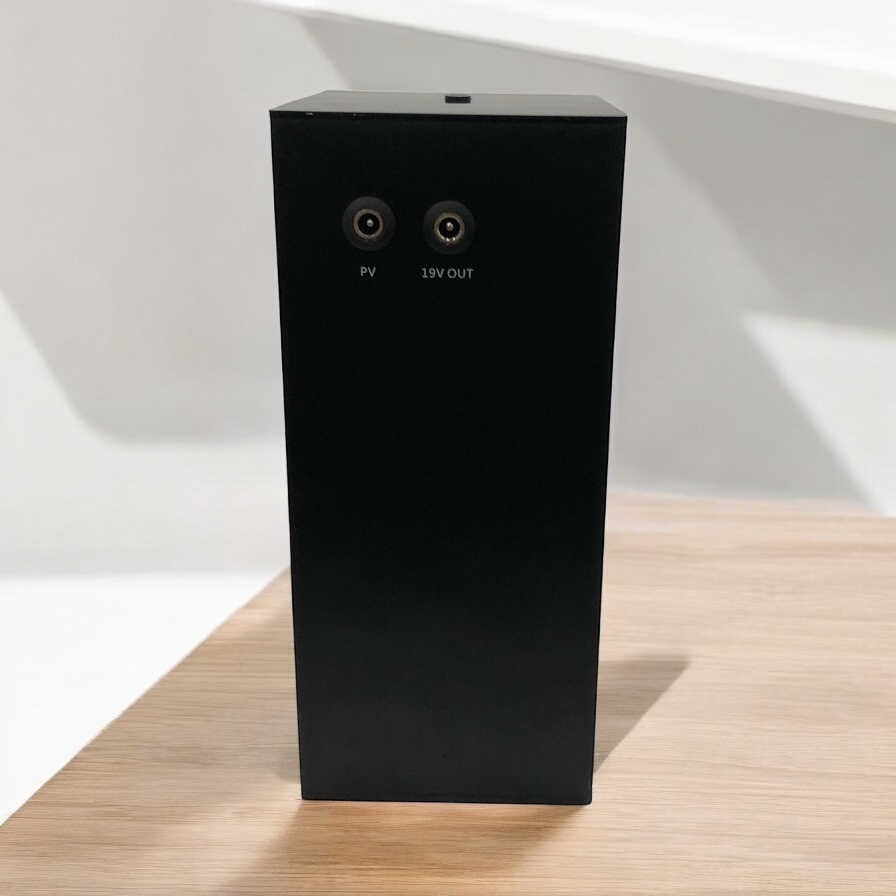

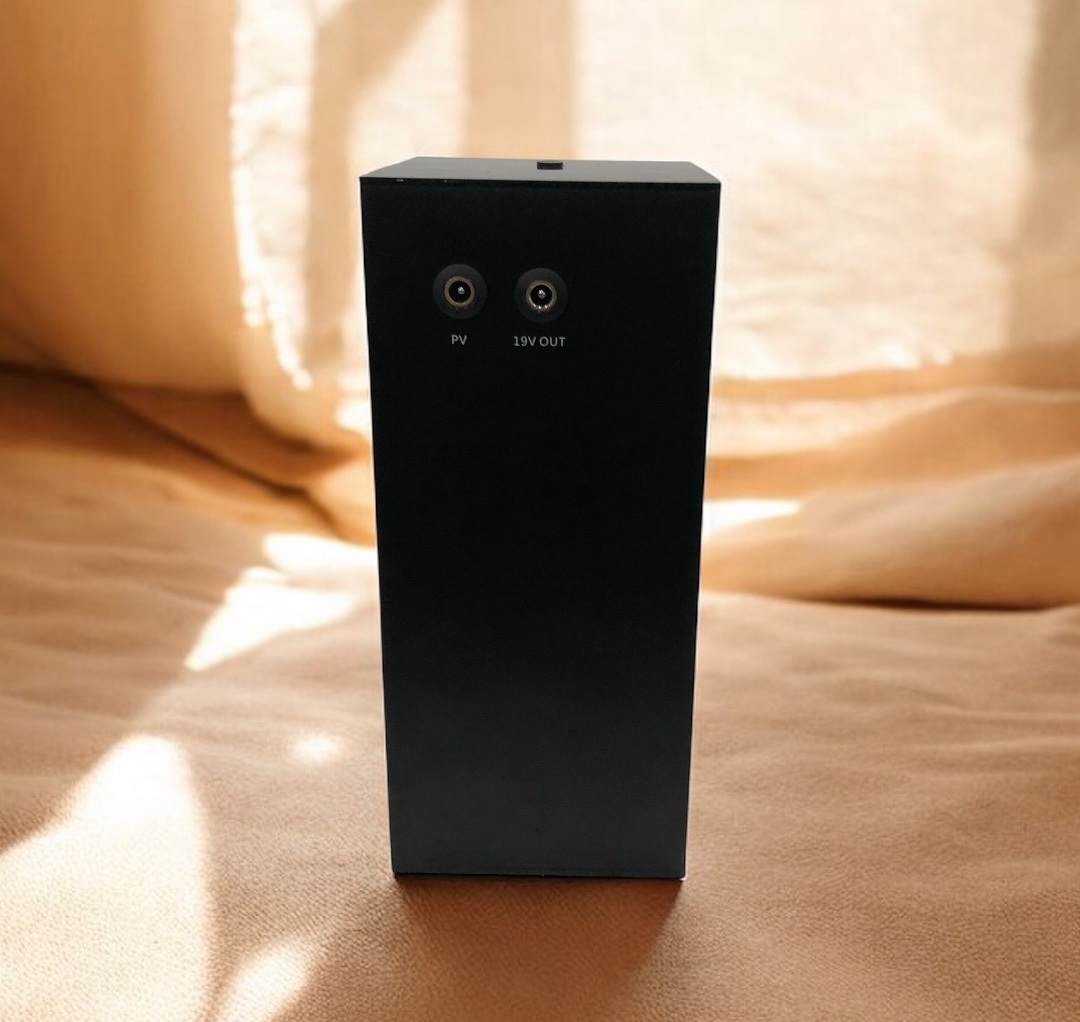

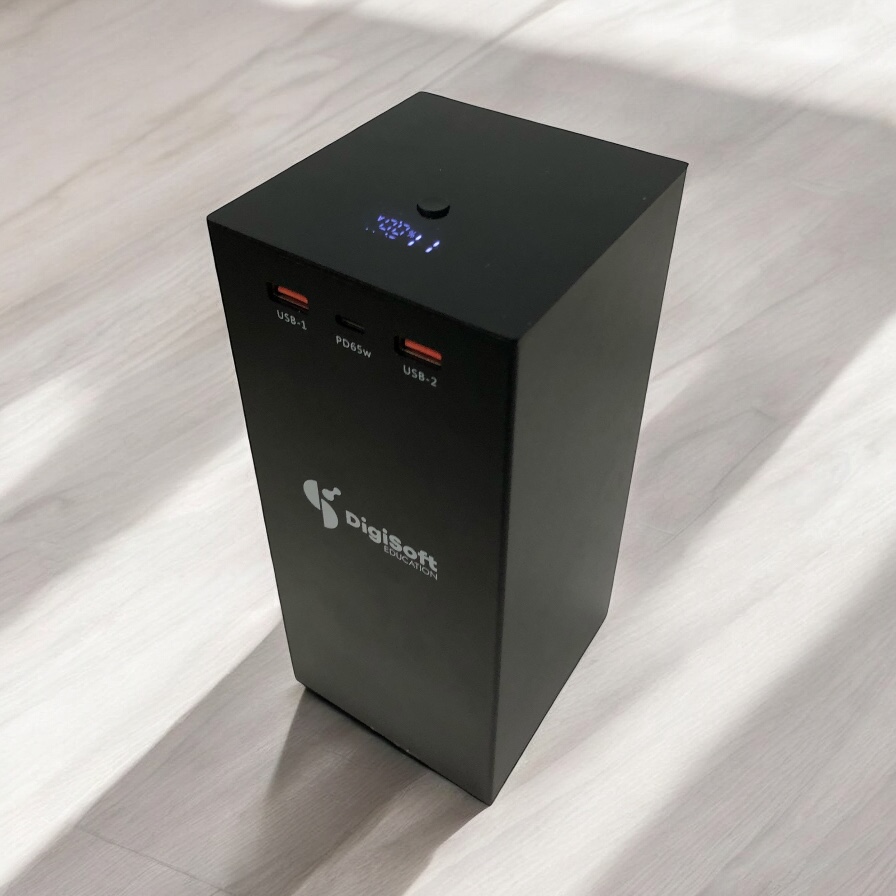

Sodium Ion Powerbank
Reliable power is essential when you’re far from the grid. The included purpose-built sodium ion powerbank is engineered for durability and performance, for over 4 hours on a single charge.
-
- Type – Sodium-ion batteries
- Protection Features – Short-circuit protection + over-current protection + overcharge protection + under-voltage protection + light-load shutdown + temperature protection
- Battery level display mode – Digital Screen
- Battery type – 3.1V sodium-ion cell
- Type-C1 Input voltage/current – 5-20V （PD65W max)
- USB-A1 – Output voltage/current – 5-12V (QC3.0 22.5W max)
- TYPE-C1 – Output voltage/current -Manually adjust the voltage output to 5V/9V/12V/15V/16V/19V/20V (100W max)
- Quiescent current – ≤110uA
- Input and output current range – 0~5A（max)
- No-load maintenance time – 30 sec – 40 sec
- Product size- 203.4*95*91mm
- Bare weight- 2.6Kg
- Material science – Aluminum alloy
